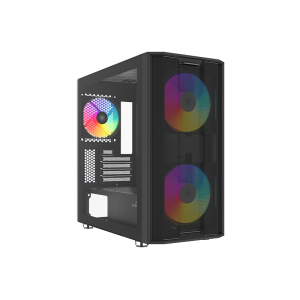

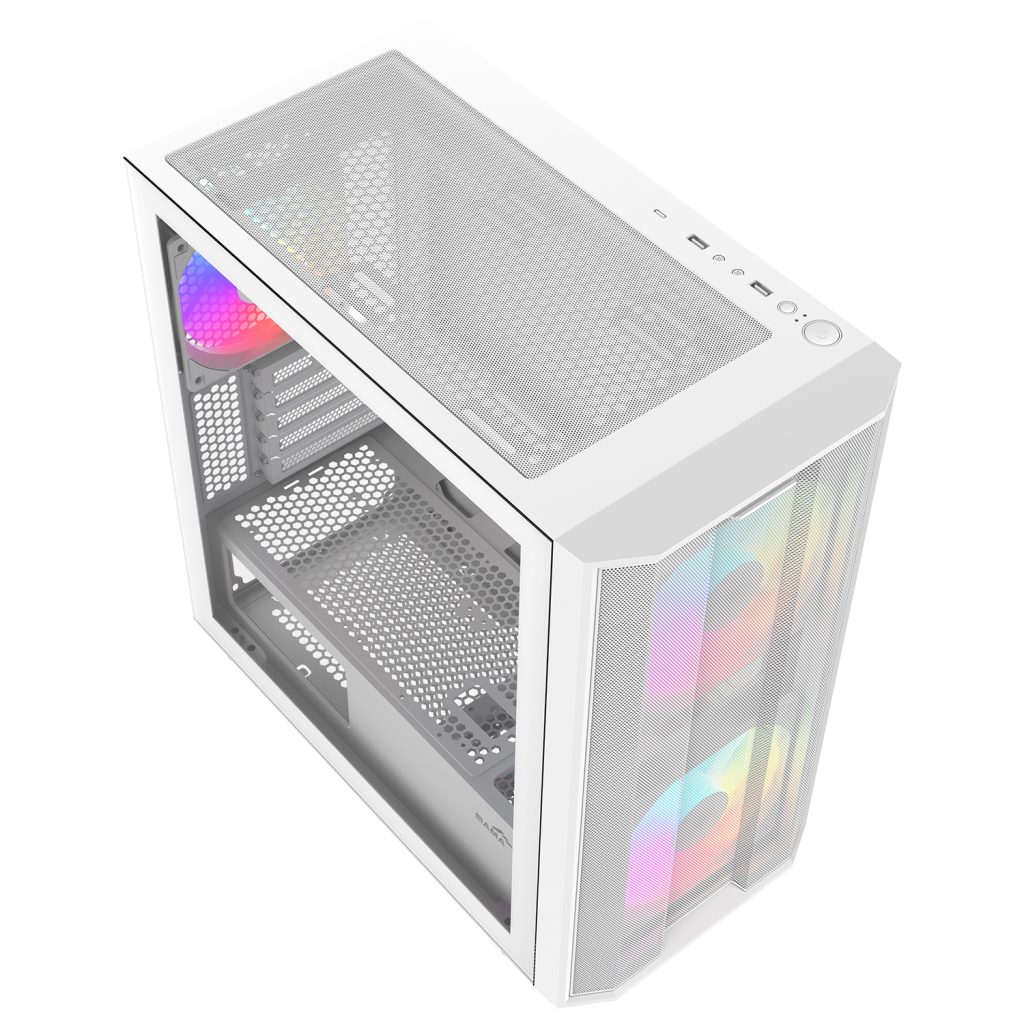

S30

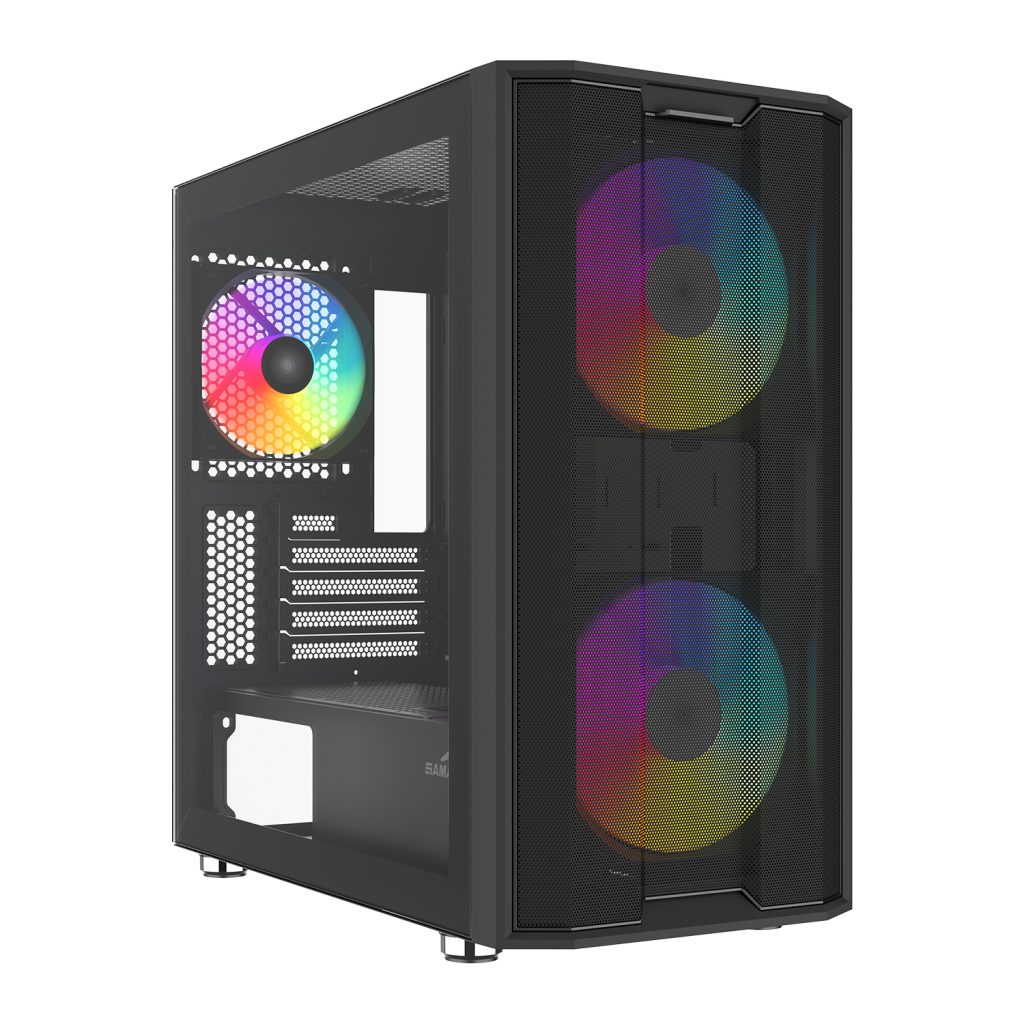

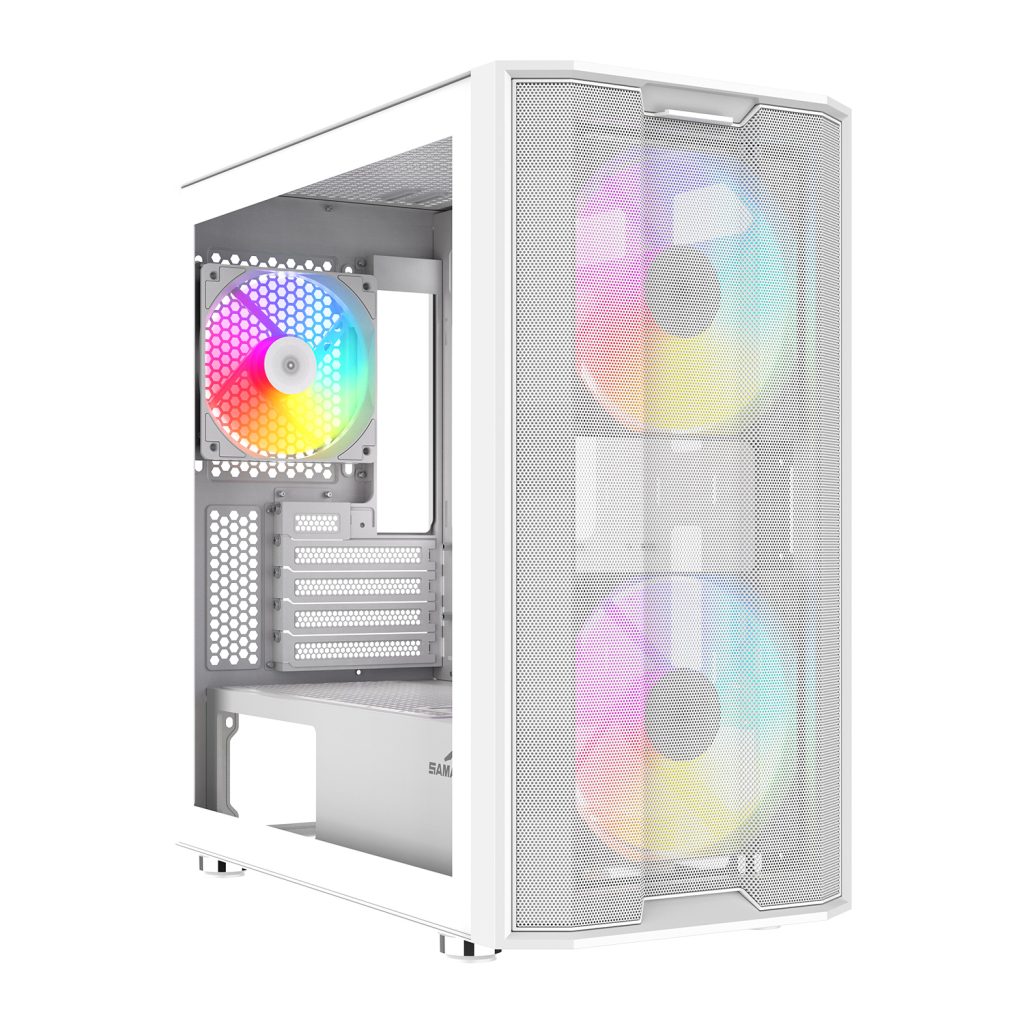

The S30 is a compact M-ATX case supporting 350mm GPUs, 166mm CPU coolers, and a 280mm top radiator. Its high-airflow mesh front and three PWM ARGB fans provide strong cooling, while triple dust filters keep your build clean.

Farbe

#000000
#ffffff

Produkthandbuch

Spezifikationen

Dimensions		429×215×422mm (L×W×H)
Materials		ABS+SPCC+Tempered Glass

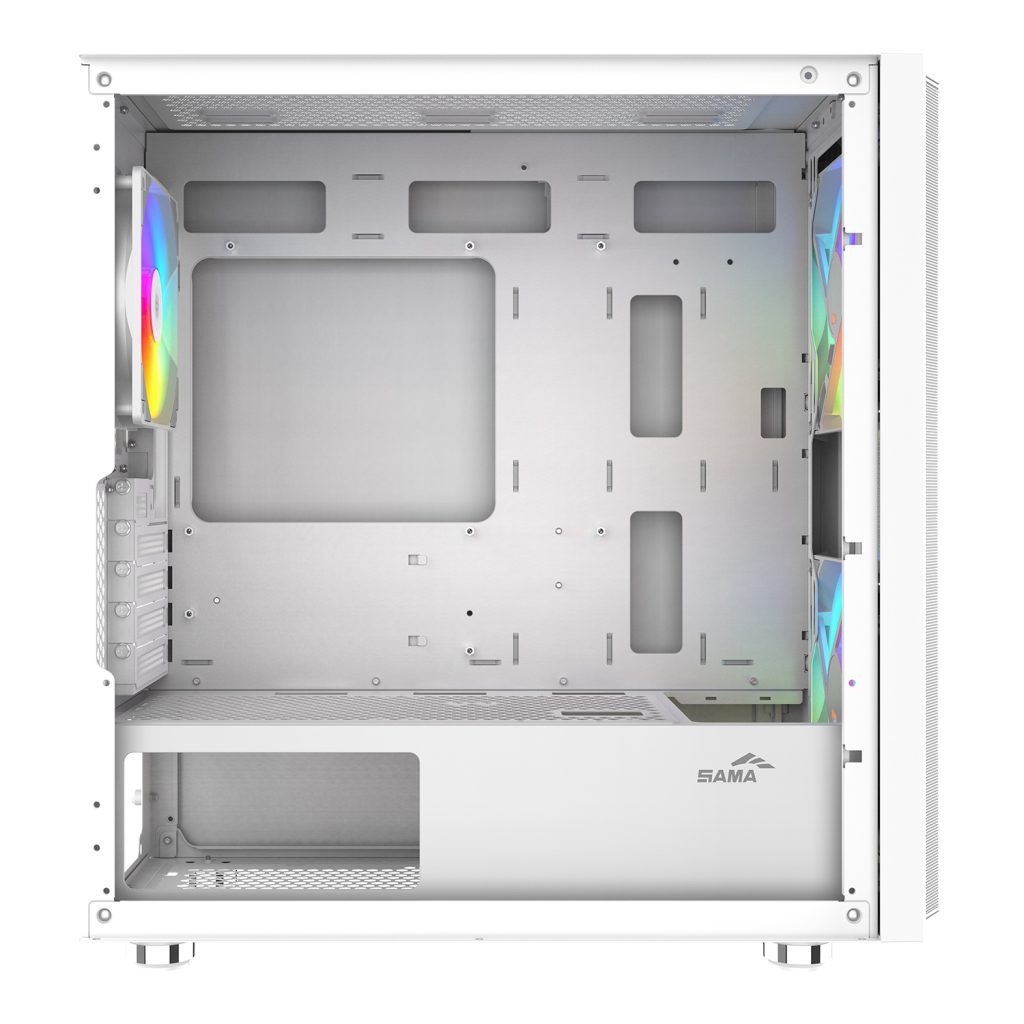

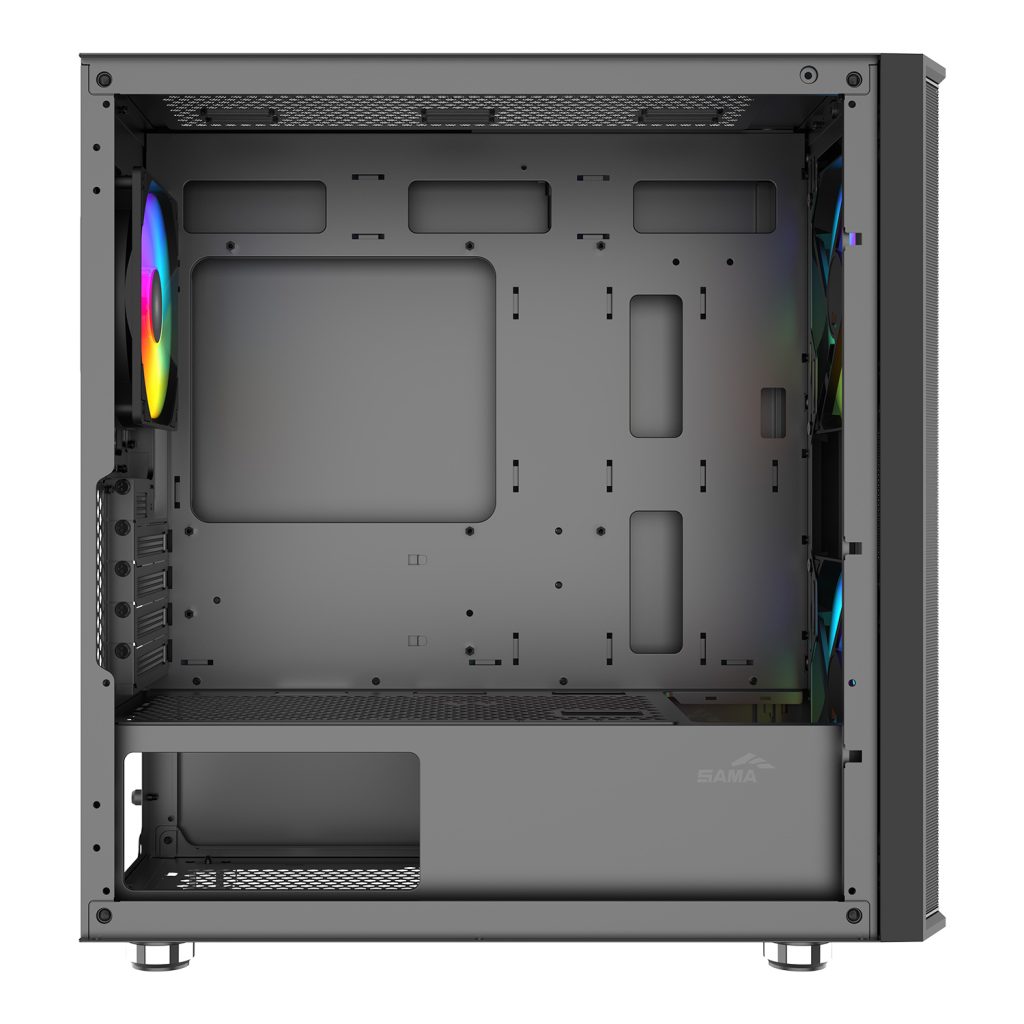

Motherboard Support		M-ATX, ITX
Expansion Slots		4
Max CPU Cooler Height		166mm
Max GPU Length		350mm (Fan mounted inside: 330mm)
Power Supply Type		ATX, ≤200mm
Fan Support	Front	3×120mm / 2×140mm
	Top	2×120mm / 2×140mm
	Rear	1×120mm
	Bottom	2×120mm (PSU shroud)
	Side	N/A
Radiator Support	Front	360 / 280 / 240 / 120mm
	Top	280 / 240 / 120mm
	Rear	120mm
	Bottom	N/A
	Side	N/A

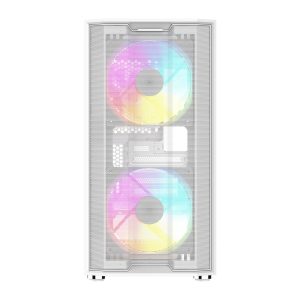

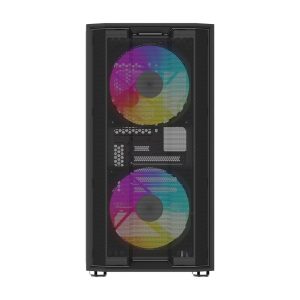

Pre-Installed Fans	Front	2×140mm ARGB PWM fans
	Rear	1×120mm ARGB PWM fan
	Bottom	None

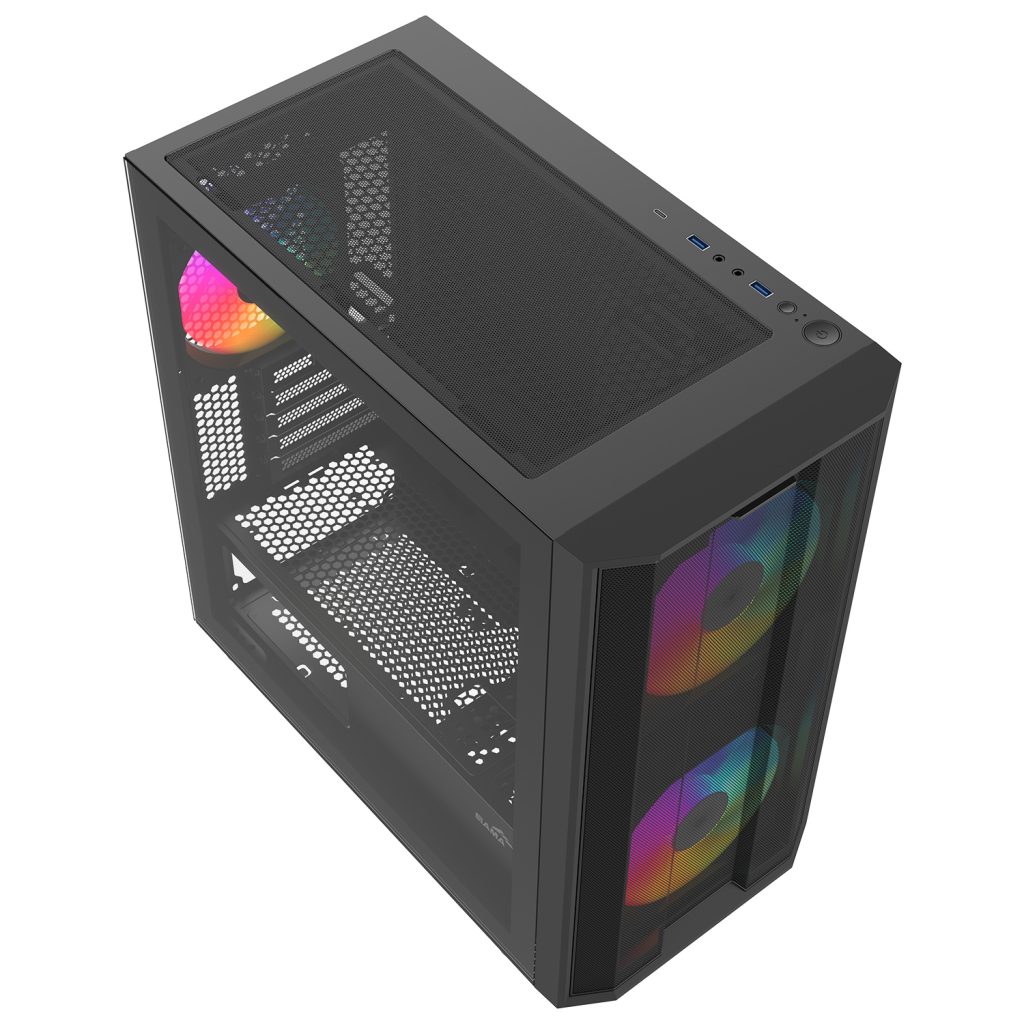

I/O Ports		USB 3.1 Type-C×1, USB 3.0×2, Audio×1, Mic×1
3.5" Drive Bays		2
2.5" Drive Bays		2
