V60

Das SAMA V60-Gehäuse präsentiert sich mit einem stilvollen Zwei-Kammer-Design und einer elegant geschwungenen Frontpanel für ein ansprechendes, modernes Erscheinungsbild. Die rechte Seitenwand ist mit zwei großflächigen Mesh-Abschnitten ausgestattet, die den Luftstrom verbessern und die Kompatibilität mit bis zu 10 Lüftern für eine beeindruckende Kühlleistung ermöglichen. Diese Kombination aus Ästhetik und leistungsstarker Funktionalität macht das V60-Gehäuse zur idealen Wahl für einen Build, der sowohl auf ansprechende Optik als auch auf effektive Kühlung setzt.
Farbe
  • #0a0a0a
  • #ffffff

SAMA V60

The SAMA V60 case showcases a stylish dual-chamber design, featuring an elegantly curved front panel for an appealing, modern look. The right-side panel is equipped with two large mesh sections, enhancing airflow and enabling compatibility with up to 10 fans for impressive cooling power. This combination of aesthetics and high-performance functionality makes the V60 case a perfect choice for a build that prioritizes both visual appeal and cooling efficiency.

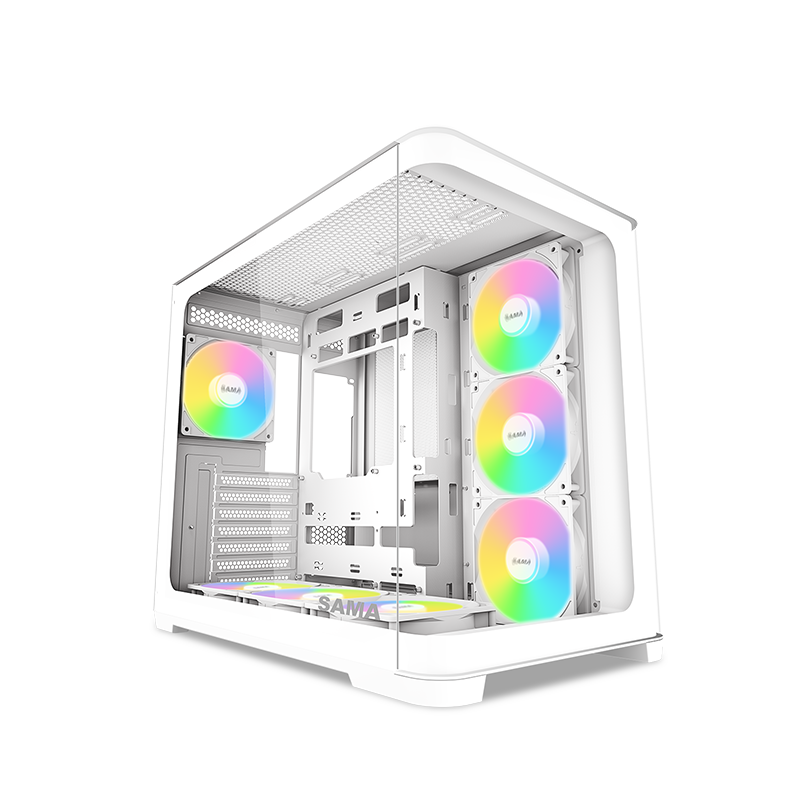

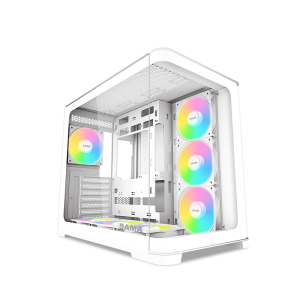

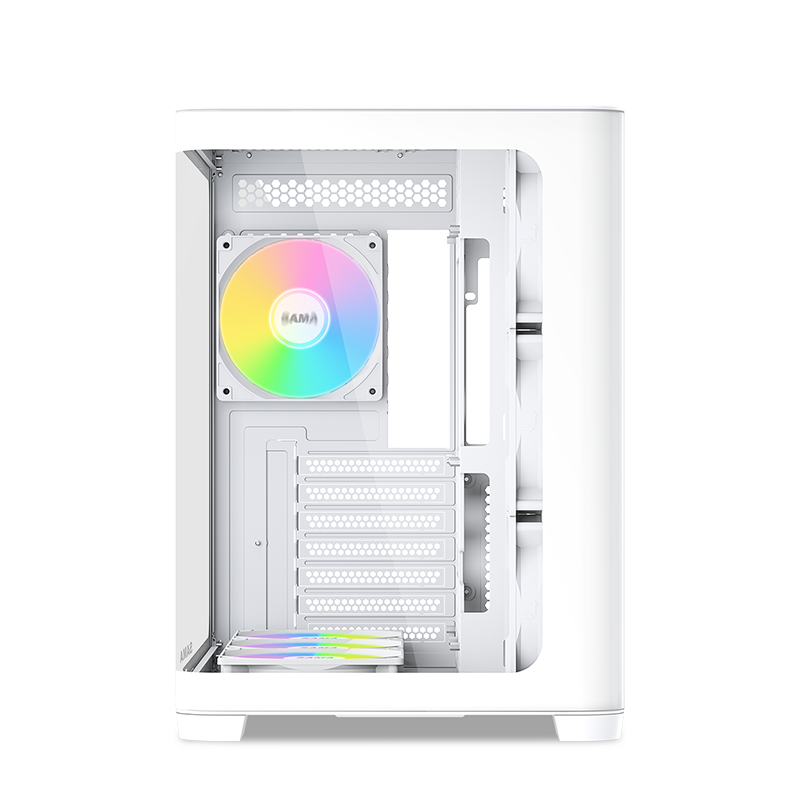

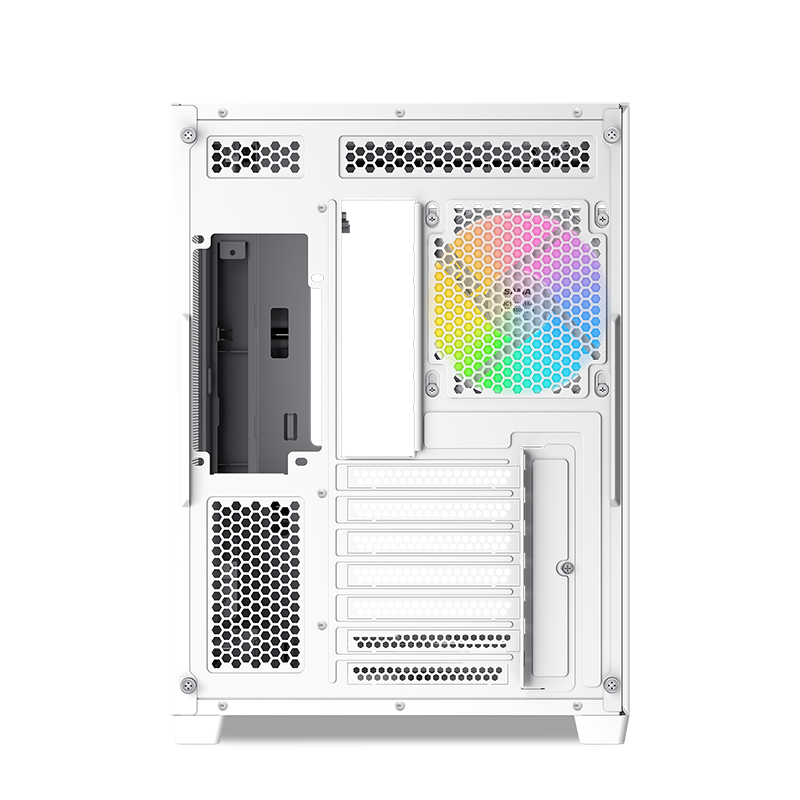

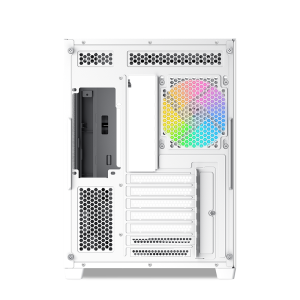

WHITE For A Fresh, Modern Look

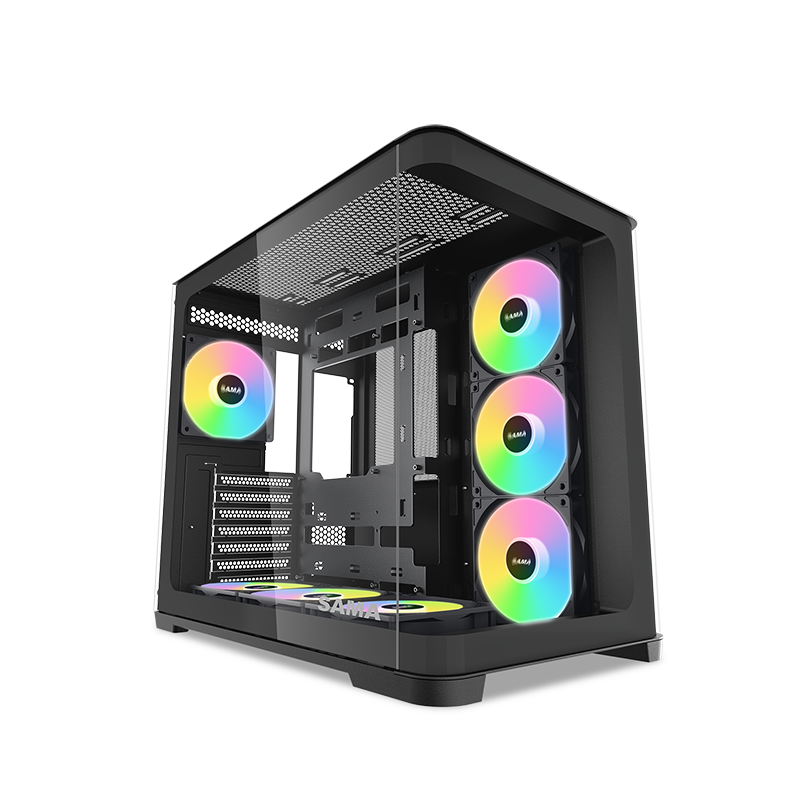

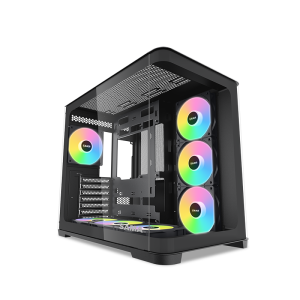

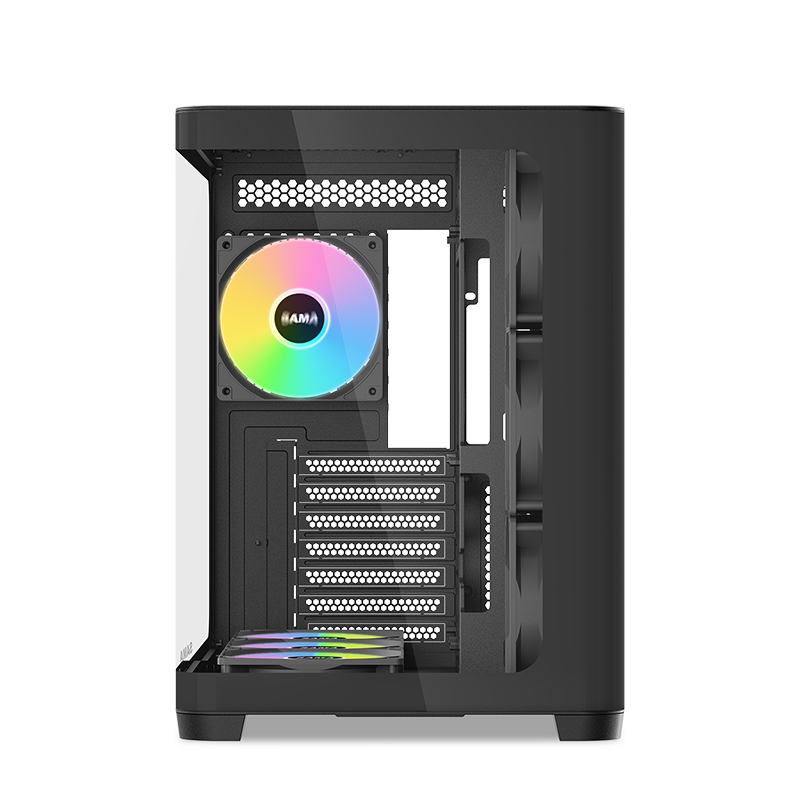

BLACK Classic Black ,Sophisticated Look

AVAILABLE IN TWO COLORS

Each color option is thoughtfully crafted to suit a variety of personal styles, allowing you to choose the one that best complements your unique setup and environment.

CURVED GLASS PANEL

The SAMA V60 features tempered glass panels on both the front and side, designed with elegant curves at the connection points. This unique curved glass design adds a touch of sophistication, enhancing the visual appeal and providing a clear view of your build's interior components.

COMPACT YET ADAPTABLE

The SAMA V60 is an ATX case that offers versatile motherboard compatibility, supporting ATX, MATX, and ITX form factors, as well as back-connect motherboards. This flexibility allows users to build a wide range of systems, accommodating different sizes and configurations with ease.

PRE-INSTALLED FANS

× 7

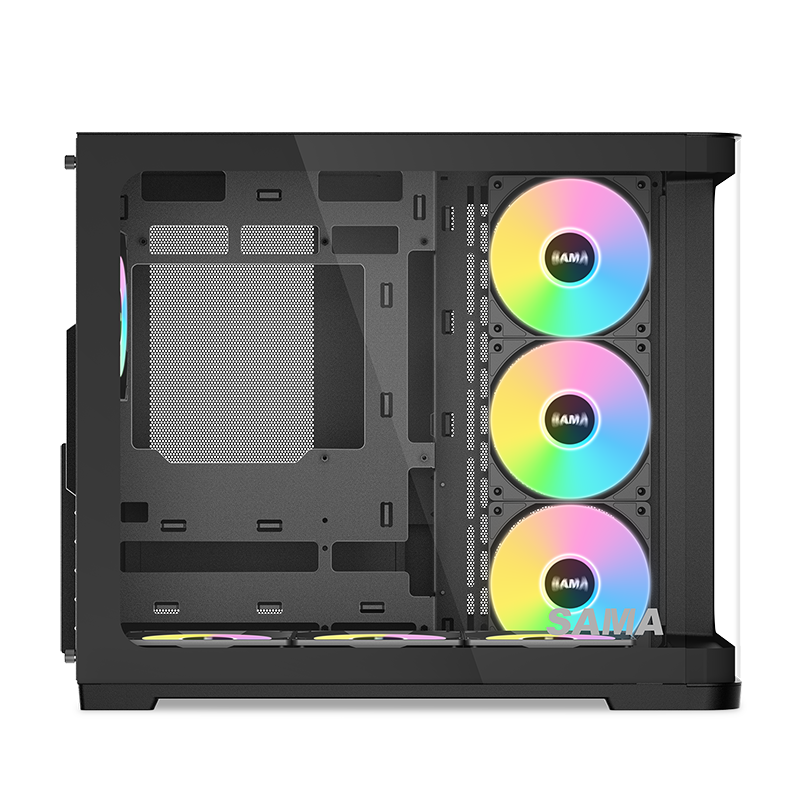

The V60 comes pre-installed with seven PWM ARGB fans: three positioned at the front and side, and one at the rear. This setup delivers instant cooling performance while adding dynamic, vibrant lighting effects to enhance the visual appeal of your build.

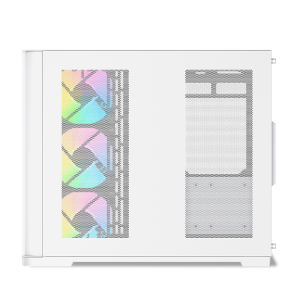

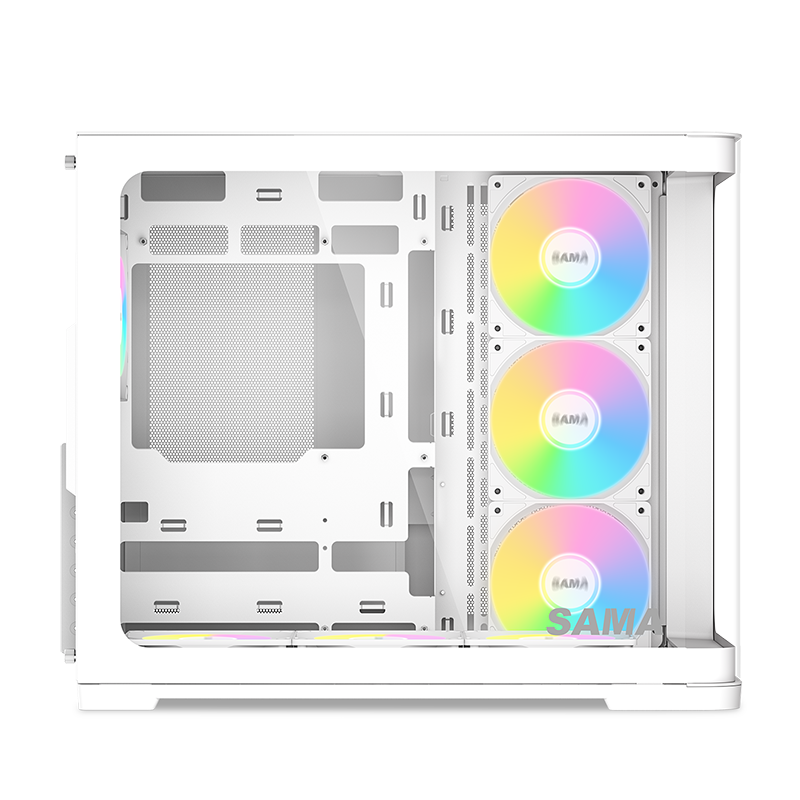

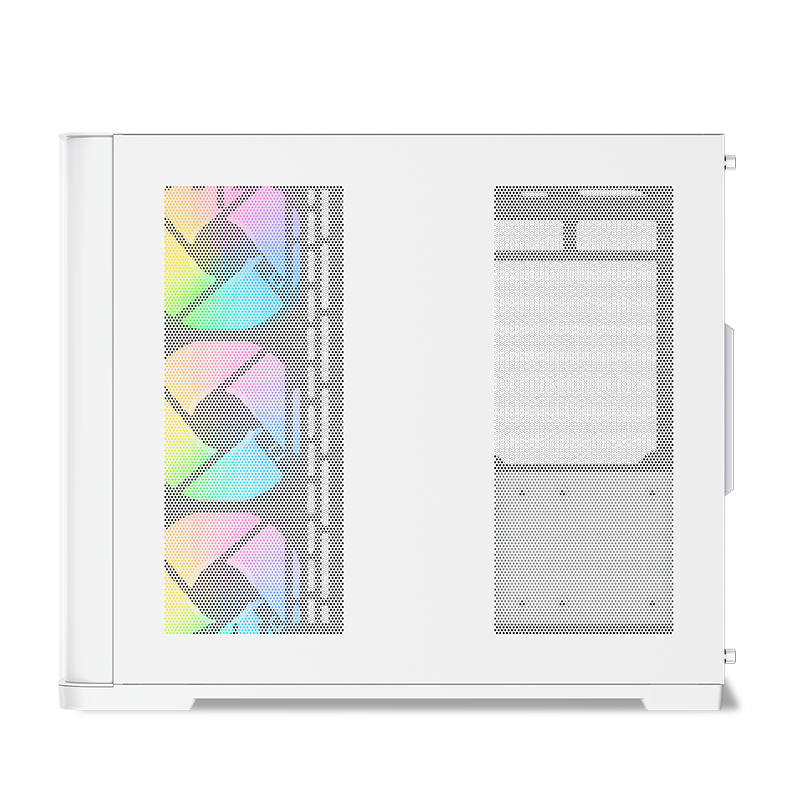

DUAL-ZONE MESH PANEL

The right panel of the V60 is designed with dual-zone mesh sections, allowing for substantial airflow across the case. This optimized design promotes efficient cooling performance, ensuring that all components remain at optimal temperatures even during high,demand usage.

ENHANCED COOLING COMPATIBILITY

  • AIO:360/280/240mm
  • FAN:120mm×3/140mm×2
  • AIO:280/240/140/120mm
  • FAN:3×120mm/2×140mm
  • AIO:120mm
  • FAN:120mm×1
  • AIO:360/280/240mm
  • FAN:120mm×3
The SAMA V60 case provides exceptional cooling compatibility, supporting up to 10 fans across the top, bottom, side, and rear panels for maximum airflow. For water cooling enthusiasts, it also accommodates 360mm radiators on both the top and bottom, ensuring optimal thermal performance for high-powered systems.

Spezifikationen
Dimensions 475*285*398mm (L×W×H)
Materials SPCC + 4mm Tempered Glass
Motherboard Support ATX / M-ATX / ITX (back-connected ATX & M-ATX)
Expansion Slots 7
Max CPU Cooler Height 160mm
Max GPU Length 445mm
Power Supply Type ATX up to 210mm in length
Fan Support Front N/A
Top 120mm x 3 / 140mm x 2
Rear 120mm x 1
Bottom 120mm x 3(PSU Shroud)
Side 120mm x 3 / 140mm x 2
Radiator Support Front N/A
Top 120mm / 140mm / 240mm / 280mm / 360mm
Rear 120mm
Bottom 120mm / 240mm / 360mm
Side 120mm / 140mm / 240mm / 280mm
Pre-Installed Fans Rear 1×120mm ARGB PWM Fan
Side 3×120mm ARGB PWM Fans
Front I/O Ports  1×USB3.2 Gen2x2 Type-C
2×USB 3.0
3.5" Drive Bays 2
2.5" Drive Bays 2
