Mid-Tower

Z60

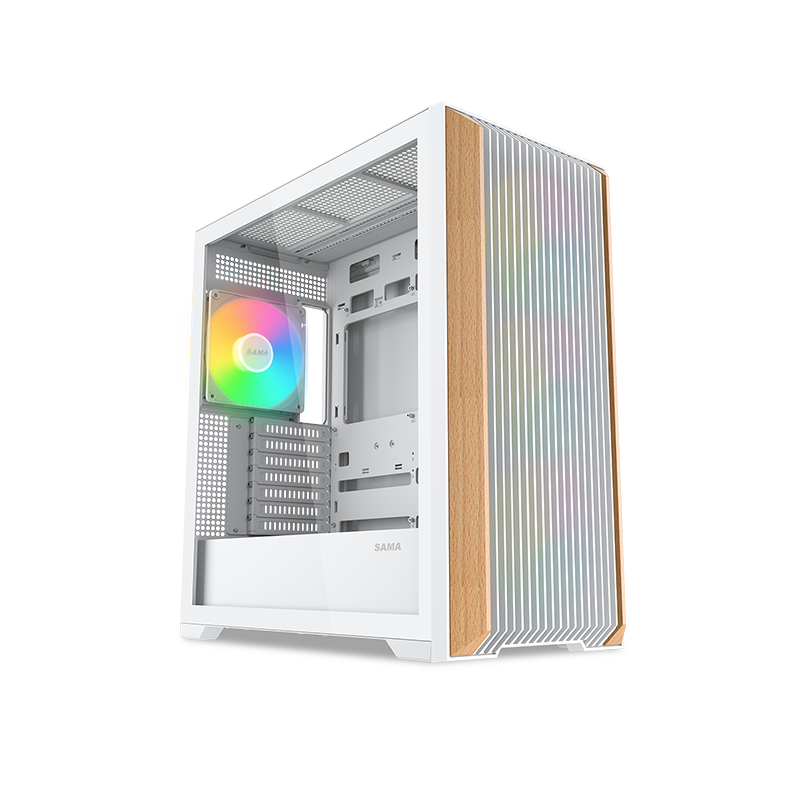

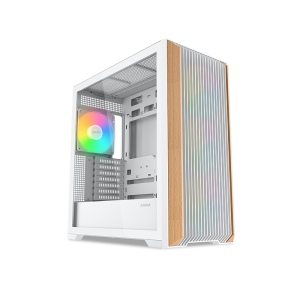

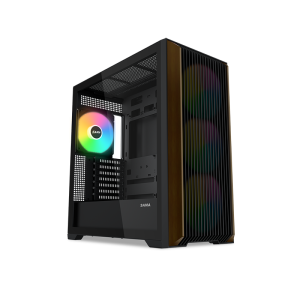

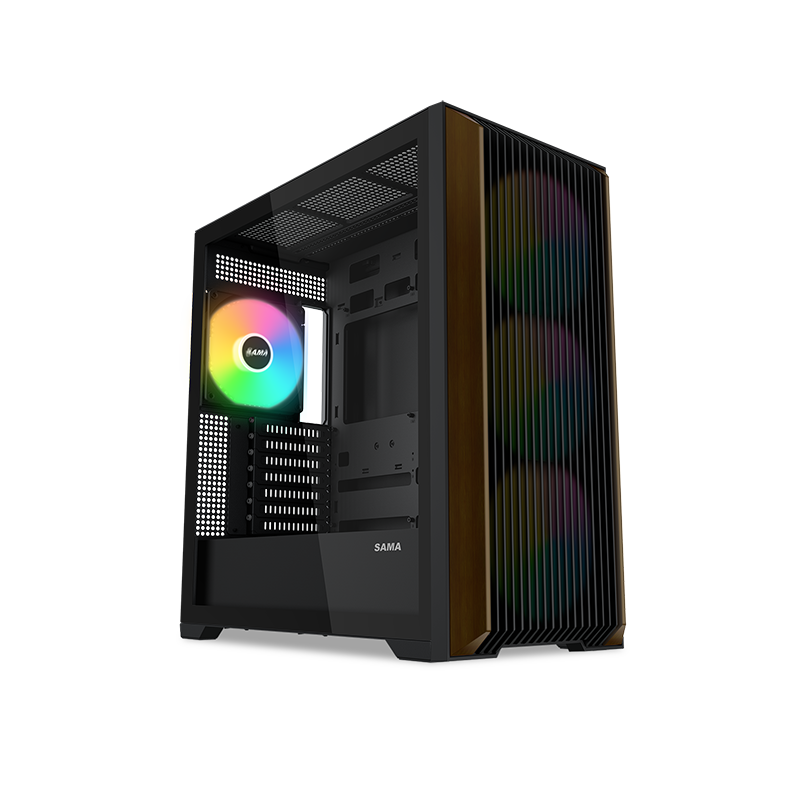

Das SAMA Z60-Gehäuse verknüpft Funktionalität auf elegante Weise mit einem anspruchsvollen Design. Zwei Frontstreifen aus echtem Walnussholz verleihen ihm eine Note natürlicher Wärme, die sich harmonisch in Ihre Wohnumgebung einfügt.
Farbe
  • #000000
  • #ffffff
Produkthandbuch

SAMA Z60

The SAMA Z60 case elevates functionality with an elegant design, featuring two authentic walnut strips on the front panel for a touch of natural warmth that complements your living space. Beyond its stylish exterior, the Z60 offers a spacious interior that comfortably supports large GPU without sacrificing cooling efficiency. This case seamlessly merges aesthetics with practicality, making it an ideal choice for those who value both performance and design.

AVAILABLE IN TWO COLORS

The SAMA Z60 is available in two stunning color options: a timeless black for a sleek, understated look and an elegant white for a clean, modern aesthetic. Each color choice is designed to seamlessly complement a range of personal styles, allowing you to select the perfect match for your unique setup.

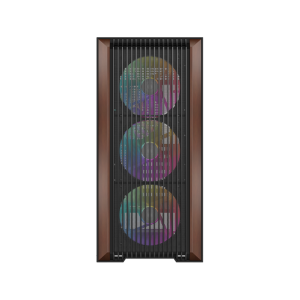

BLACK

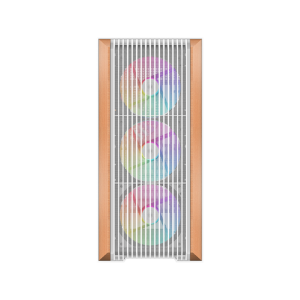

WHITE

PRE-INSTALLED FANS

× 4

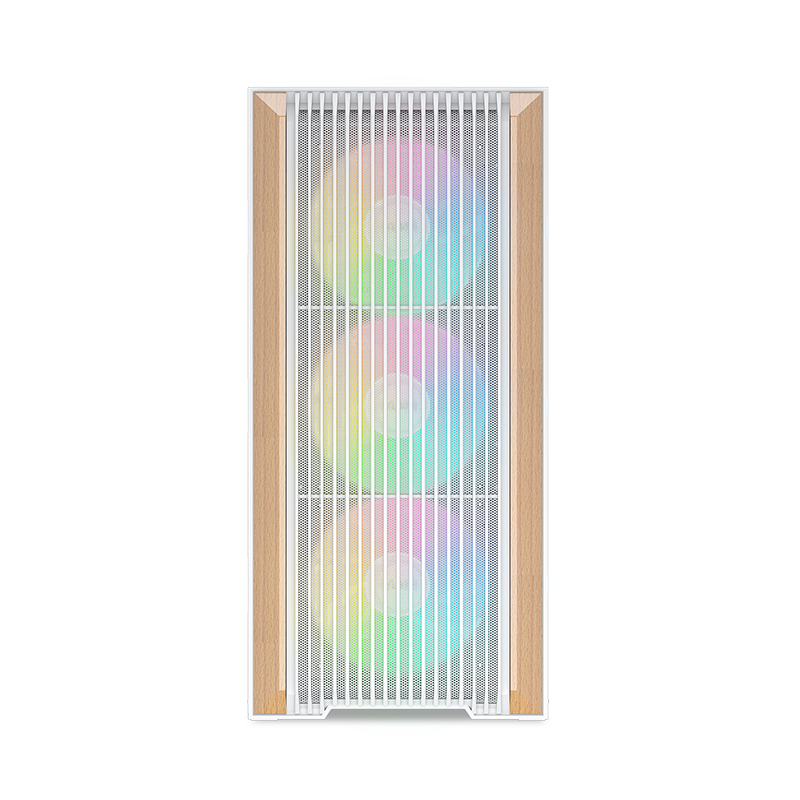

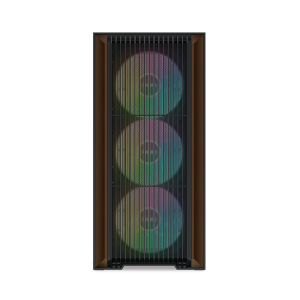

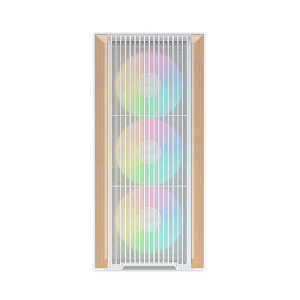

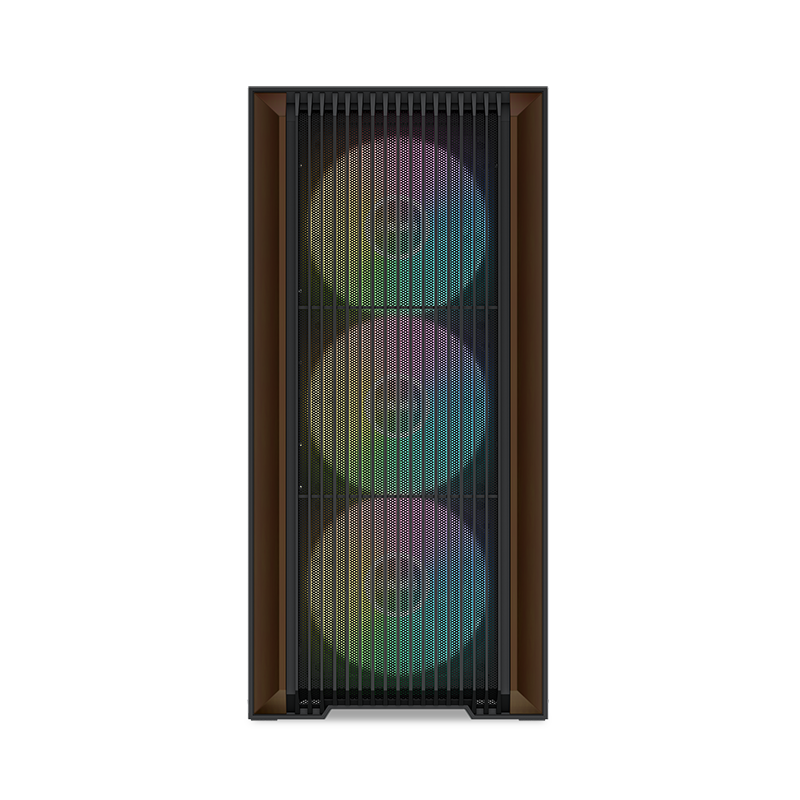

The SAMA Z60 comes pre-installed with four 140mm PWM fans: 3 at the front and 1 at the rear. While offering out-of-box cooling, these high-performance ARGB fans can also showcase vibrant lighting effects, allowing for a visually stunning build that ighlights your personal style.

WIDER IS BETTER

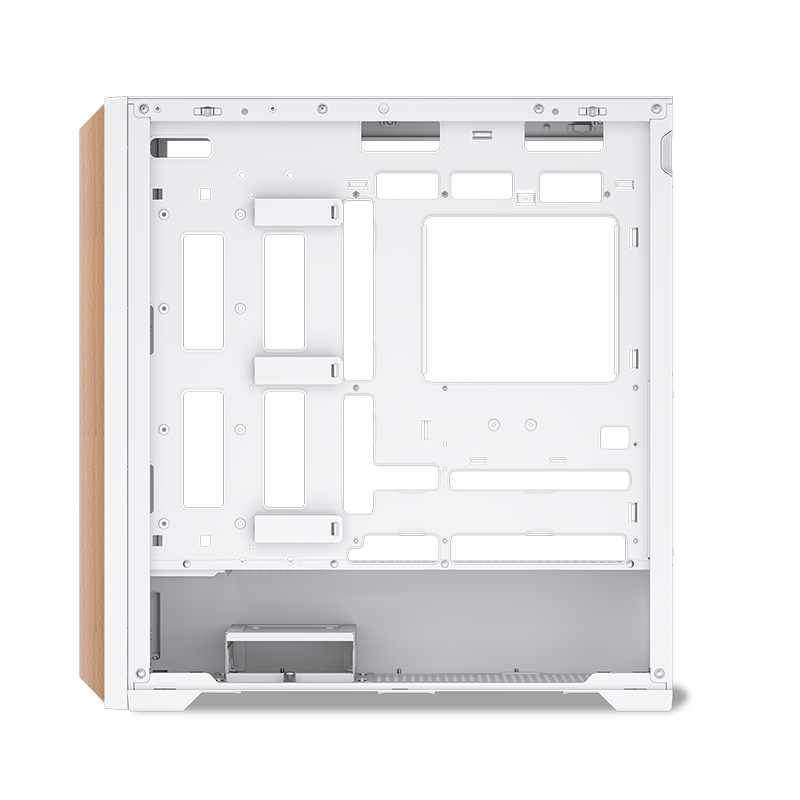

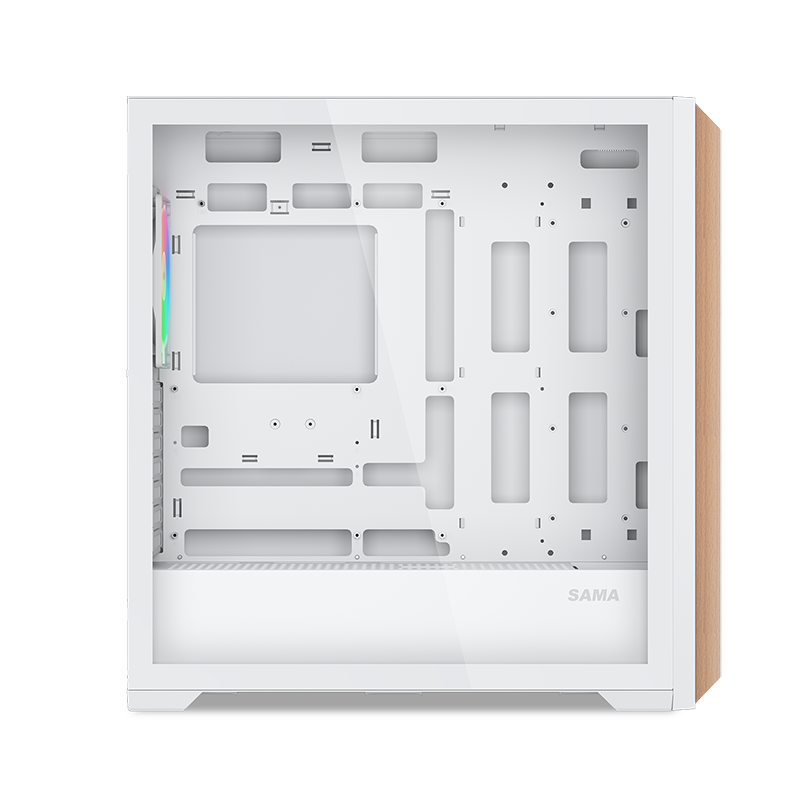

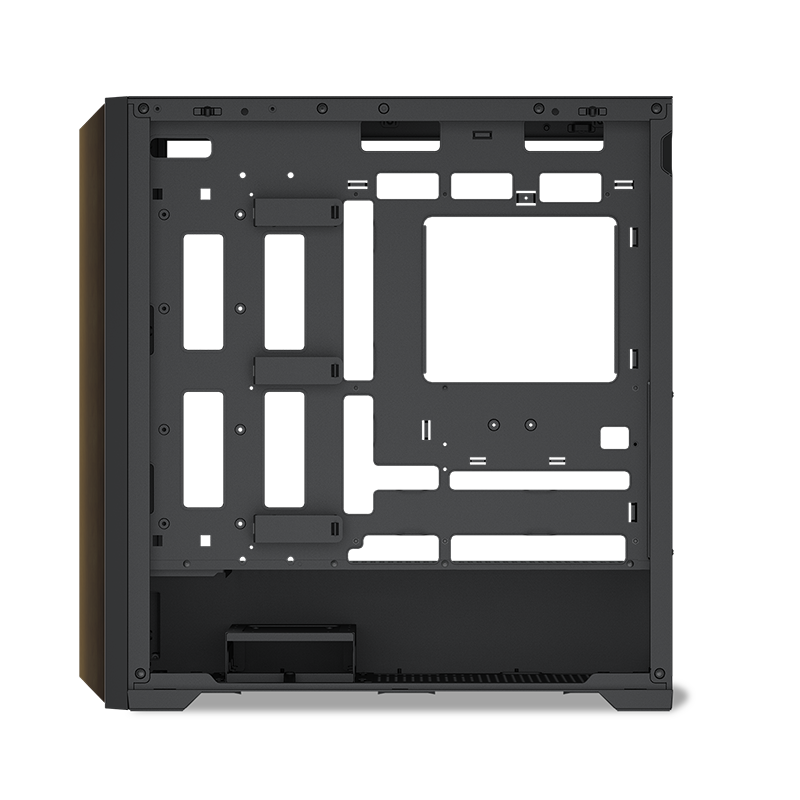

The Z60’s wide-body design provides ample space, making it compatible with back-connect motherboards while easily supporting bulky GPUs (like RTX 4090) and robust air coolers. This spacious layout ensures excellent airflow and thermal performance, allowing users to build a powerhouse system without compromising on cooling efficiency.

VERTICAL GPU SPPORTED

The Z60 is equipped with a rotatable PCle bracket, allowing forvertical GPU installation, This feature gives you the flexibility to dispiay your graphics card from various angles, enhaneing the averall aesthetics of your build and providing a unique showease for your high-performance hardware

OPTIMAL COOLING COMPATIBILITY

  • AIO:360/280/240mm
  • FAN:120mm×3/140mm×2
  • AIO:360mm/280mm/240mm
  • FAN:120mm×3/140mm×2/160mm×2
  • AIO:120mm/140mm
  • FAN:140mm×1/120mm×1
  • FAN: 120mm×2(PSU shroud)+ 120mm×1 (Bottom)
  • SIDE FAN:120mm×3
The Z60 is engineered for exceptional thermal efficiency, supporting versatile cooling configurations. It accommodates up to three 140mm fans at the front, a single 140mm fan at the rear, and two 120mm fans at the bottom. Additionally, the top panel and the front panel are both designed to fit a 360mm radiator, ensuring flexibility for both water and air cooling setups. This optimized design provides robust cooling options to maintain peak performance under any conditions.

Spezifikationen
Dimensions 480*235*496mm (L×W×H)
Materials SPCC + 4mm Tempered Glass
Motherboard Support E-ATX ≤330mm / ATX / M-ATX / ITX (back-connected ATX & M-ATX)
Expansion Slots 7
Max CPU Cooler Height 185mm
Max GPU Length 435mm
Power Supply Type ATX up to 200mm in length
Fan Support Front 120mm x 3 / 140mm x 3
Top 120mm x 3 / 140mm x 2
Rear 120mm x 1/ 140mm x 2
Bottom 120mm x 2/ 140mm x 2(PSU Shroud)
Side N/A
Radiator Support Front 120mm / 140mm / 240mm / 280mm / 360mm / 420mm
Top 120mm / 140mm / 240mm / 280mm / 360mm
Rear 120mm
Bottom N/A
Side N/A
Pre-Installed Fans Rear 1×140mm ARGB PWM Fan
Frond 3×140mm ARGB PWM Fans
Front I/O Ports 1×USB3.2 Gen2x2 Type-C
2×USB 3.0
3.5" Drive Bays 2
2.5" Drive Bays 2pcs +1pcs combined with 3.5in mounts
